三菱

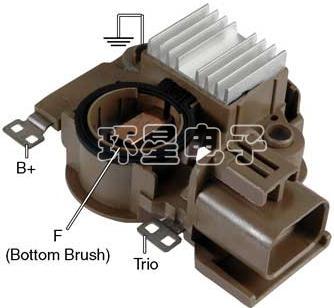

HX02-157
12 Volt, A-Circuit, D-P Terminals, 14.4 Vset
For： Mitsubishi ED/IF Alternators
Used On：Mazda (2000-2005) , Mazda - Europe (2002-2008)
Replaces ：MAZDA GY01-18-W70, MITSUBISHI 465, A866X46572
Dimensions: 24mm ID Slip Ring Cover
Note: IM465 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators. See VRC101-26 regulator test adapter.
Features: • Works with vehicle PCM • Field controlled unit
Transpo: IM465
For： Mitsubishi ED/IF Alternators
Used On：Mazda (2000-2005) , Mazda - Europe (2002-2008)
Replaces ：MAZDA GY01-18-W70, MITSUBISHI 465, A866X46572
Dimensions: 24mm ID Slip Ring Cover
Note: IM465 is NOT a traditional regulator, but a field control unit that works with the vehicle's computer (PCM) to control the voltage and output. Traditional test methods will immediately damage D-P Type regulators. See VRC101-26 regulator test adapter.
Features: • Works with vehicle PCM • Field controlled unit
Transpo: IM465
