DENSO

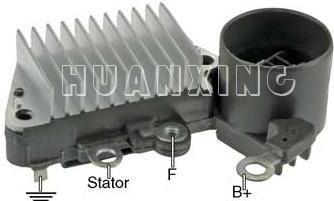

HX01-101
12 Volt, A-Circuit, D-IG-L Terminals, 14.5 Vset, w/ LRC
For:Denso IR/IF Alternators
Used On:Asuna (1993-1993) , Geo (1990-1993) , Isuzu (1990-1993) , Jaguar (1993-1997) , Jaguar - Europe (1994-1997)
Replaces :DENSO 126000-1200, ISUZU 8970320910, JAGUAR JLM-11144
Dimensions: 63.5mm Mtg. Length
Note: •  Active lamp function - with output.•  Similar to  HX01-093 except:  HX01-093: wo / LRC. HX01-101: w/ LRC.
Transpo: IN435
