DENSO

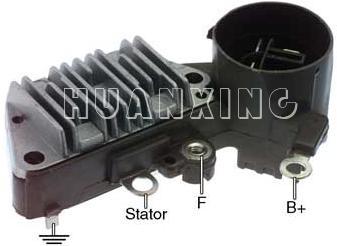

HX01-093

12 Volt, A-Circuit, D-IG-L Terminals, 14.5 Vset
For:Denso IR/IF Alternators
Used On:Chevrolet (1985-1988) , Geo (1989-1992) , Honda (1984-1987) , Isuzu (1984-1995) , Isuzu - Europe (1986-1992) , John Deere (1998-2004) , Opel LCV - Europe (1988-1994) , Pontiac (1985-1988)
Replaces :DENSO 126000-0430, 126000-1711, HONDA 31150-PE0-003, ISUZU 8941390120, GM 94139012
Dimensions: 63.5mm Mtg. Length
Note: • Active lamp function - with output.• Not interchangeable with IN219 w/ standard lamp function.• Similar to HX01-101 except: HX01-093: wo / LRC. HX01-101: w/ LRC
Transpo: IN221
USI: 71-30021
For:Denso IR/IF Alternators
Used On:Chevrolet (1985-1988) , Geo (1989-1992) , Honda (1984-1987) , Isuzu (1984-1995) , Isuzu - Europe (1986-1992) , John Deere (1998-2004) , Opel LCV - Europe (1988-1994) , Pontiac (1985-1988)
Replaces :DENSO 126000-0430, 126000-1711, HONDA 31150-PE0-003, ISUZU 8941390120, GM 94139012
Dimensions: 63.5mm Mtg. Length
Note: • Active lamp function - with output.• Not interchangeable with IN219 w/ standard lamp function.• Similar to HX01-101 except: HX01-093: wo / LRC. HX01-101: w/ LRC
Transpo: IN221
USI: 71-30021
