DENSO
HX01-047

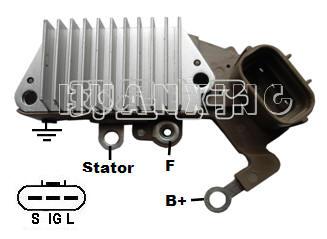

12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset, 5 set. LRC
For：Denso IR/IF Alternators
Used On：Lexus (1996-1997) , Toyota (1993-1999),Toyota – Europe(1992-1999)
Replaces ：DENSO 126000-1730, 126000-1750,126000-1930,126000-2250
TOYOTA 27700-11070, 27700-11080, 27700-66040, 27700-75020
Dimensions: 63.5mm Mtg. Length
Note: •  Active lamp function - with output.• Replaces Denso 126000-1520, -1521, -1730, -2250 w/o LRCFeatures： Circuit protected against shorted field, shorted lamp, load dump,battery disconnect.
Transpo: IN437
USI: 71-30016
