DENSO
HX01-021

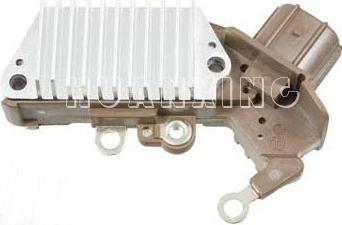

12 Volt, B-Circuit, IG-S-L-FR Terminals,  14.1 Vset, w/ LRC
For：Denso IR/IF Alternators
Used On：Toyota (2005-2010)
Replaces ：DENSO 126600-0520, 126600-0540, TOYOTA 27700-21050, 27700-75030, DENSO GS2M0520, GS2M0540
Dimensions: 63.5mm Mtg. LengthNote: This regulator will not work correctly in Toyota Yaris with daylight running lights.
Features：Ignition activated•  Soft start, LRC•  Short-circuit protection: lamp, field
Transpo: IN3054
