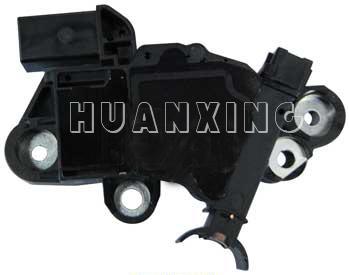

BOSHE
HX05-143
12 Volt, B-Circuit, LIN-NC Terminals
For：Bosch IR/IF Alternators
Used On ：Ford - Europe (2006-2012) , Land Rover - Europe (2006-2010) , Volvo (2005-2011) , Volvo - Europe (2006-2012)
Replaces ：Bosch F-00M-346-005, F-00M-346-019, F-00M-346-056, F-00M-346-097, F-00M-346-131, F-00M-346-166, Volvo 30667453
Features：• Lin interface
• Rotor control and die temperature monitoring via LIN
• B-Circuit, Voltage Set point is selectable from 10.6V to 16.0V
• LIN-NC Terminals; Lin or Stator Activated
• Load response control
Transpo: IB6056
