BOSHE

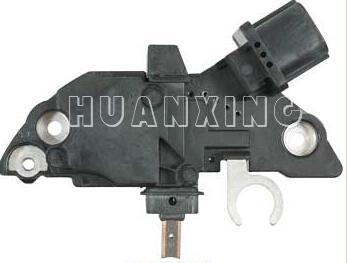

HX05-065
12 Volt, A-Circuit, IG-S-L-DFM Terminals, 14.4 Vset, 5 sec. LRC
For： Bosch IR/IF Alternators
Used On：Toyota (2005-2009) , Toyota - Europe (1999-2010)
Replaces ：BOSCH F-00M-145-236, F-00M-145-305, F-00M-145-324, F-00M-145-376, F-00M-145-865, F-00M-145-873, TOYOTA 27700-0L020
Notes: Active lamp function - with output
Features: •  External sense
•  Ignition activated but will lamp activate and stator start
•  Shorted field, lamp & choke protection
Transpo: IB236
